Matthews Bridge Replacement
This award-winning project consisted of a new two-lane bridge with a footpath and was required to open freight routes in the area as the existing single-lane bridge was nearing the end of its lifespan and had limited load capacity. Abergeldie constructed the new bridge adjacent to the existing one, undertook associated roadworks, and demolished the old bridge. The Matthews Bridge spans the Murrumbidgee River in Maude, situated between Hay and Balranald within the Hay Shire.
Client
Abergeldie Complex Infrastructure
Matthews Bridge Replacement
- Pre-construction activities including service locations, control network installation etc
-

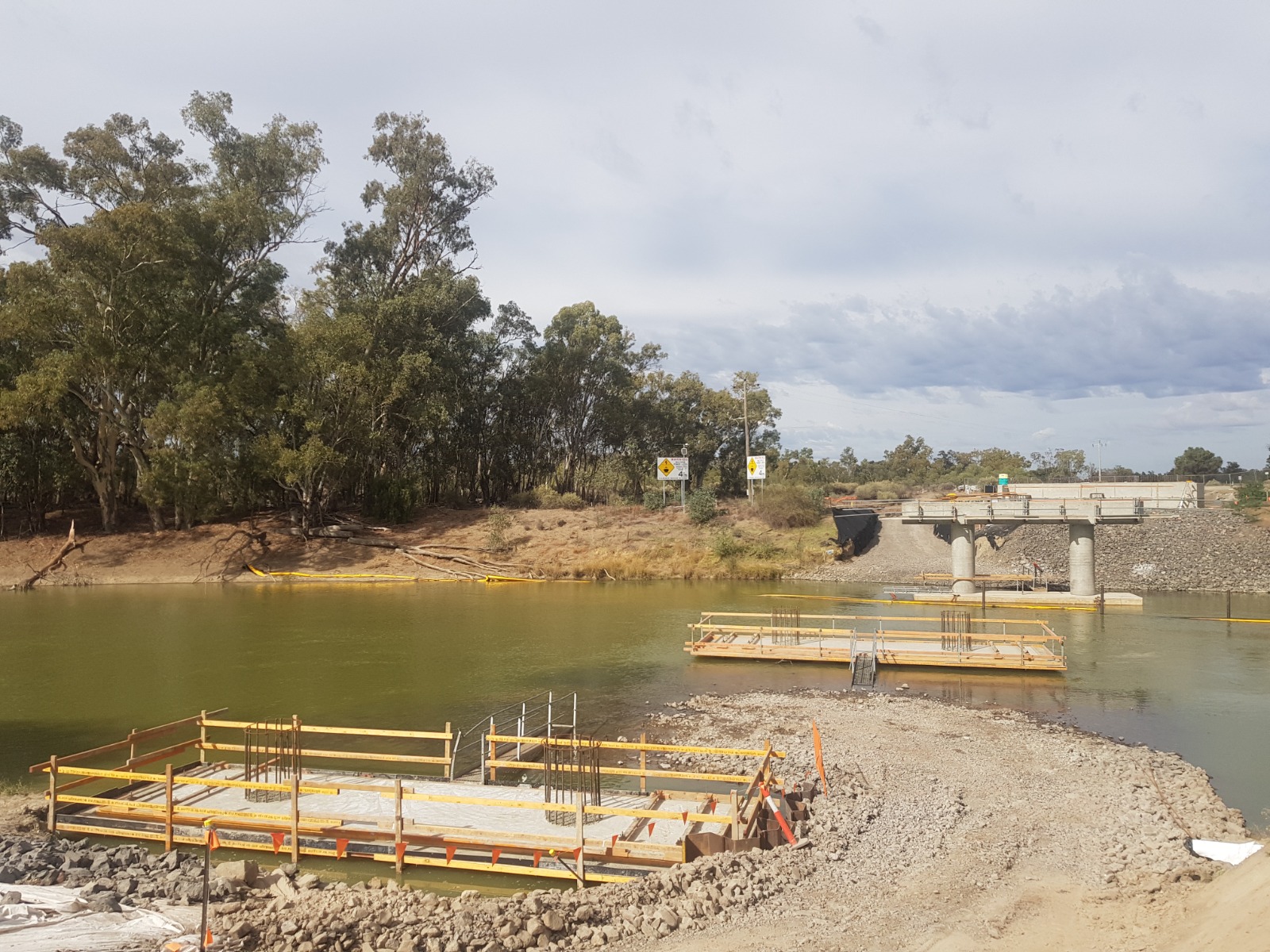

Rock Platforms constructed
-

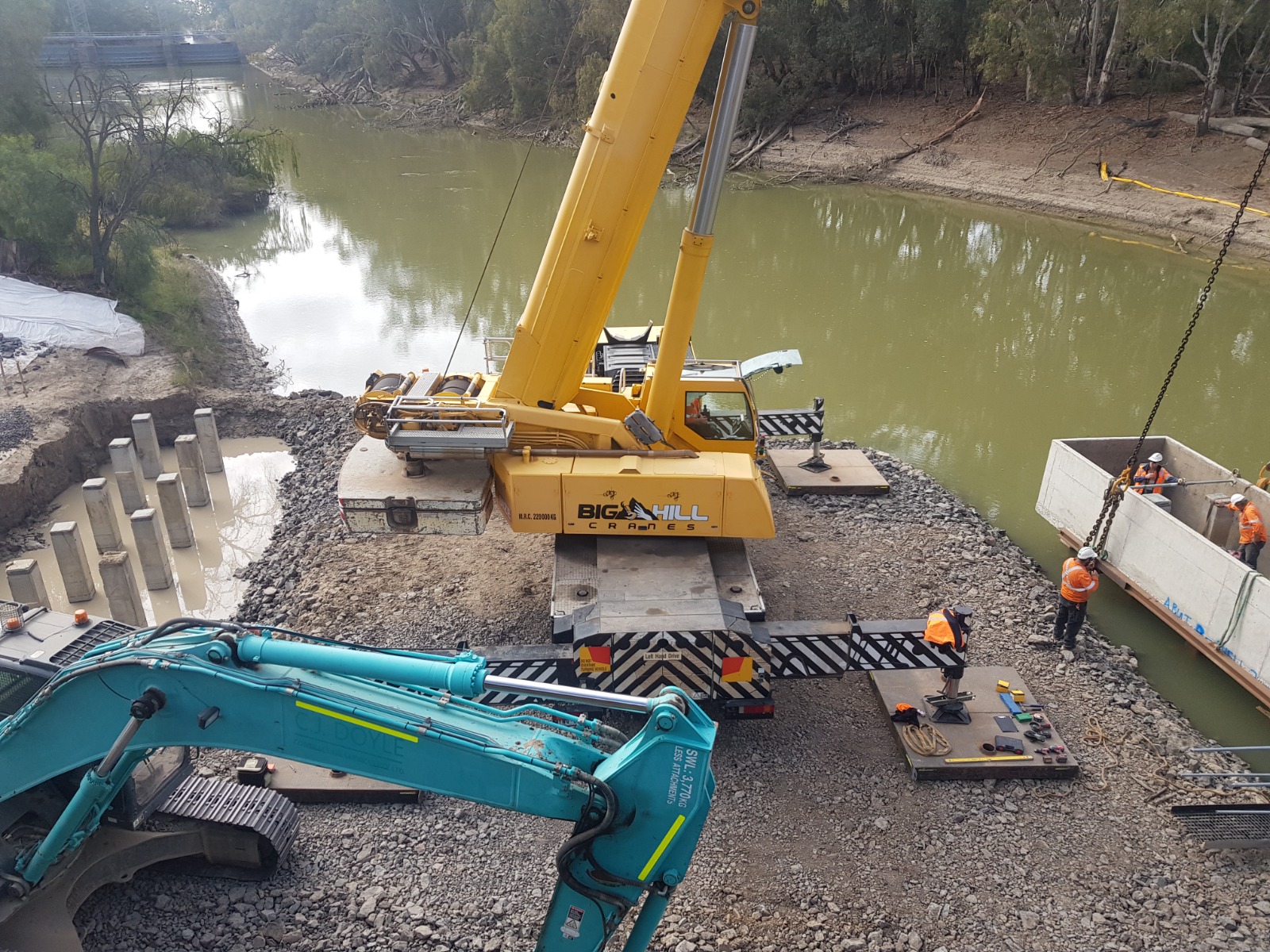

36 no. 1800mm Diameter tubes hammer driver into riverbed, +/- 25mm position
-
36 no. 400mm sq. concrete piles hammer driven into tubes, +/-25mm tolerance
-

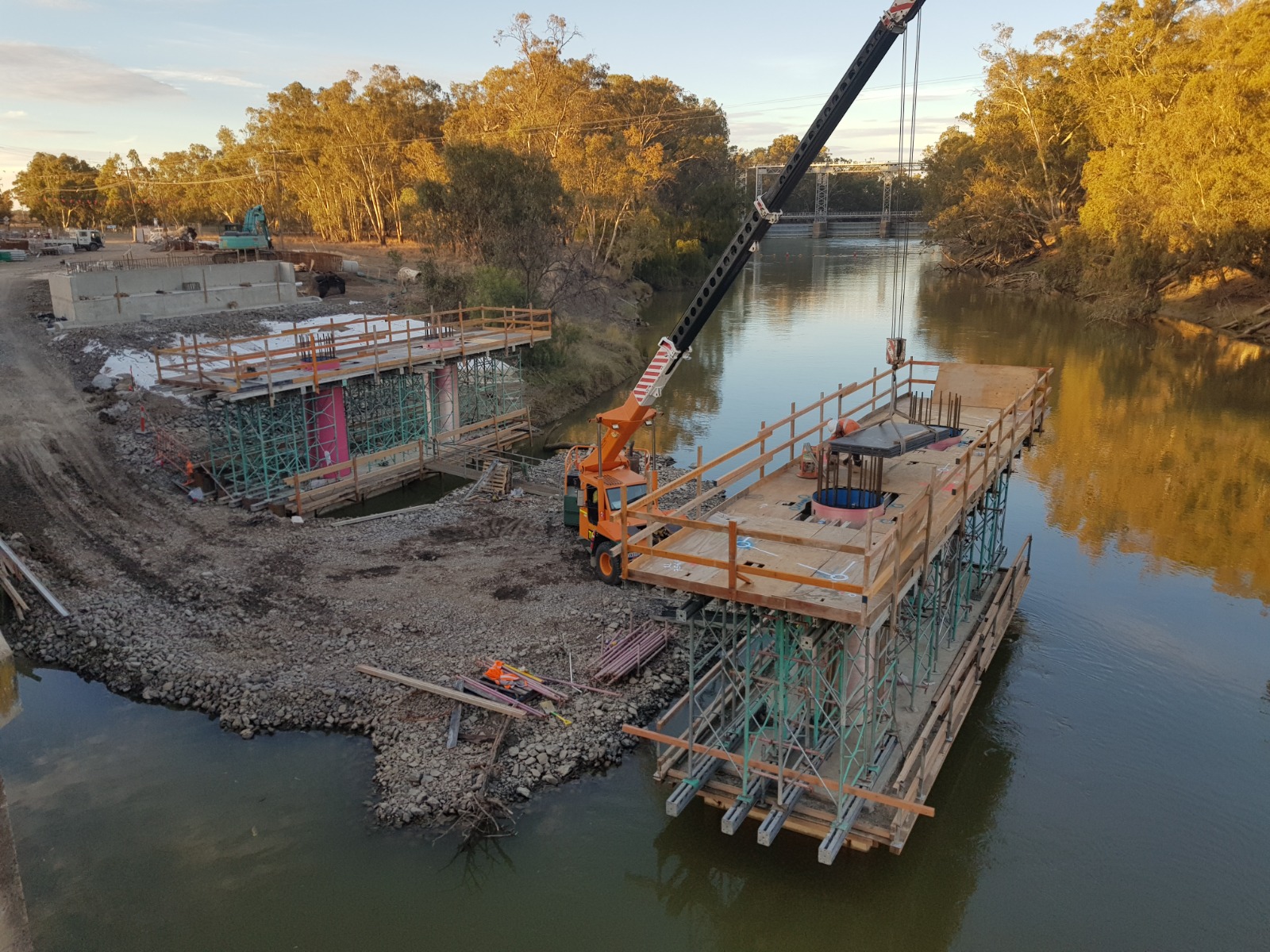

3 no. Concrete shells constructed
-

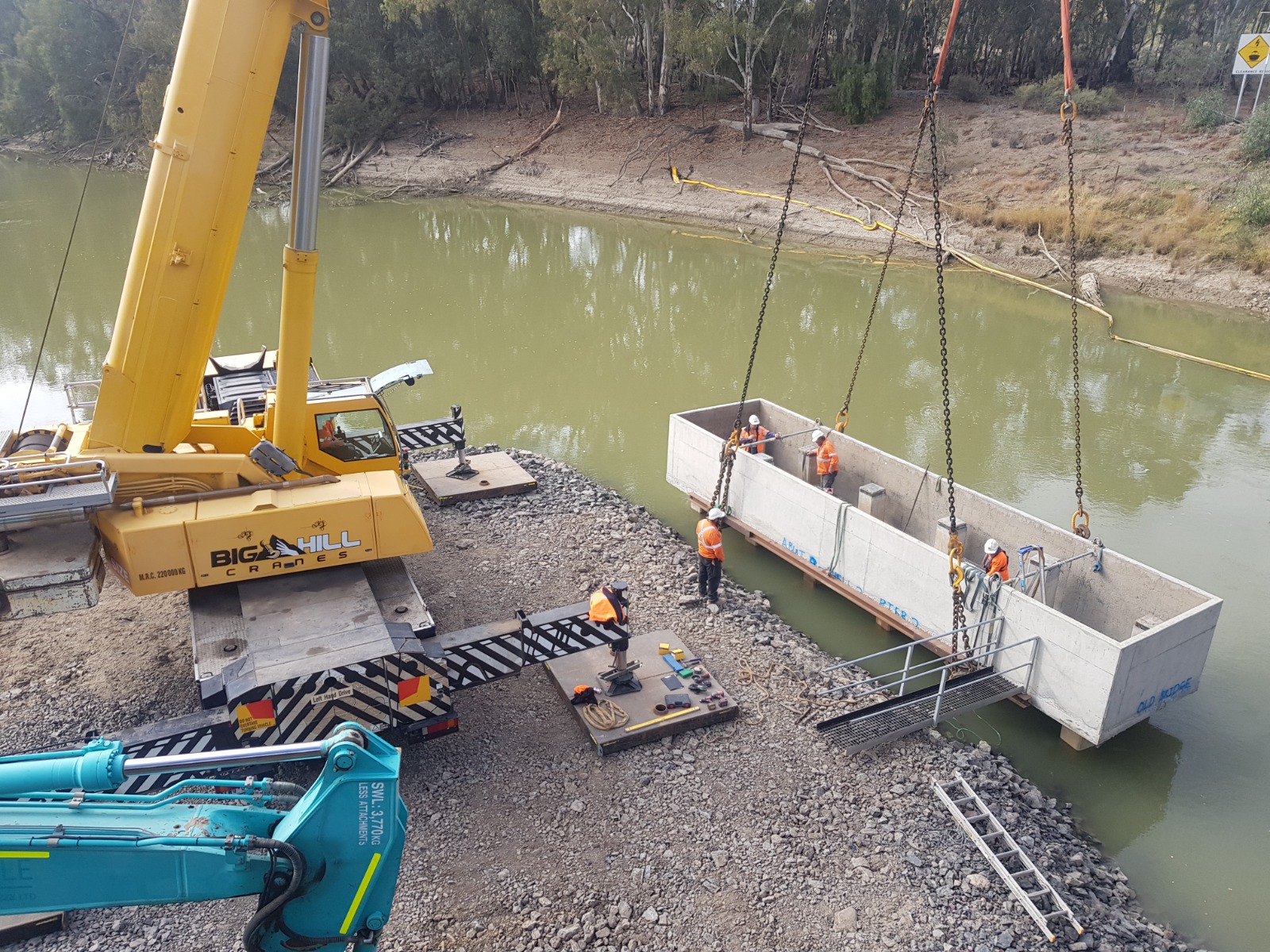

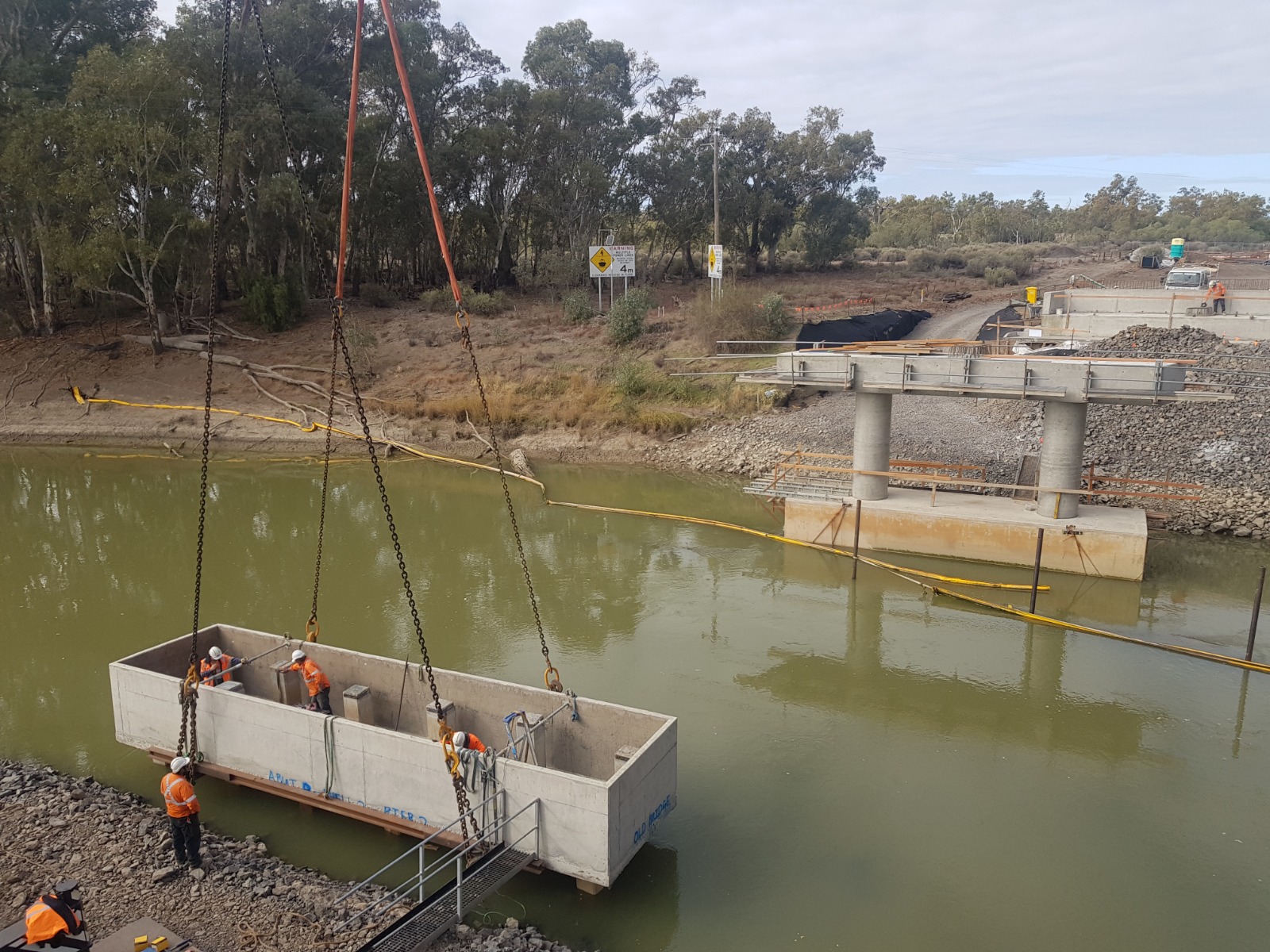

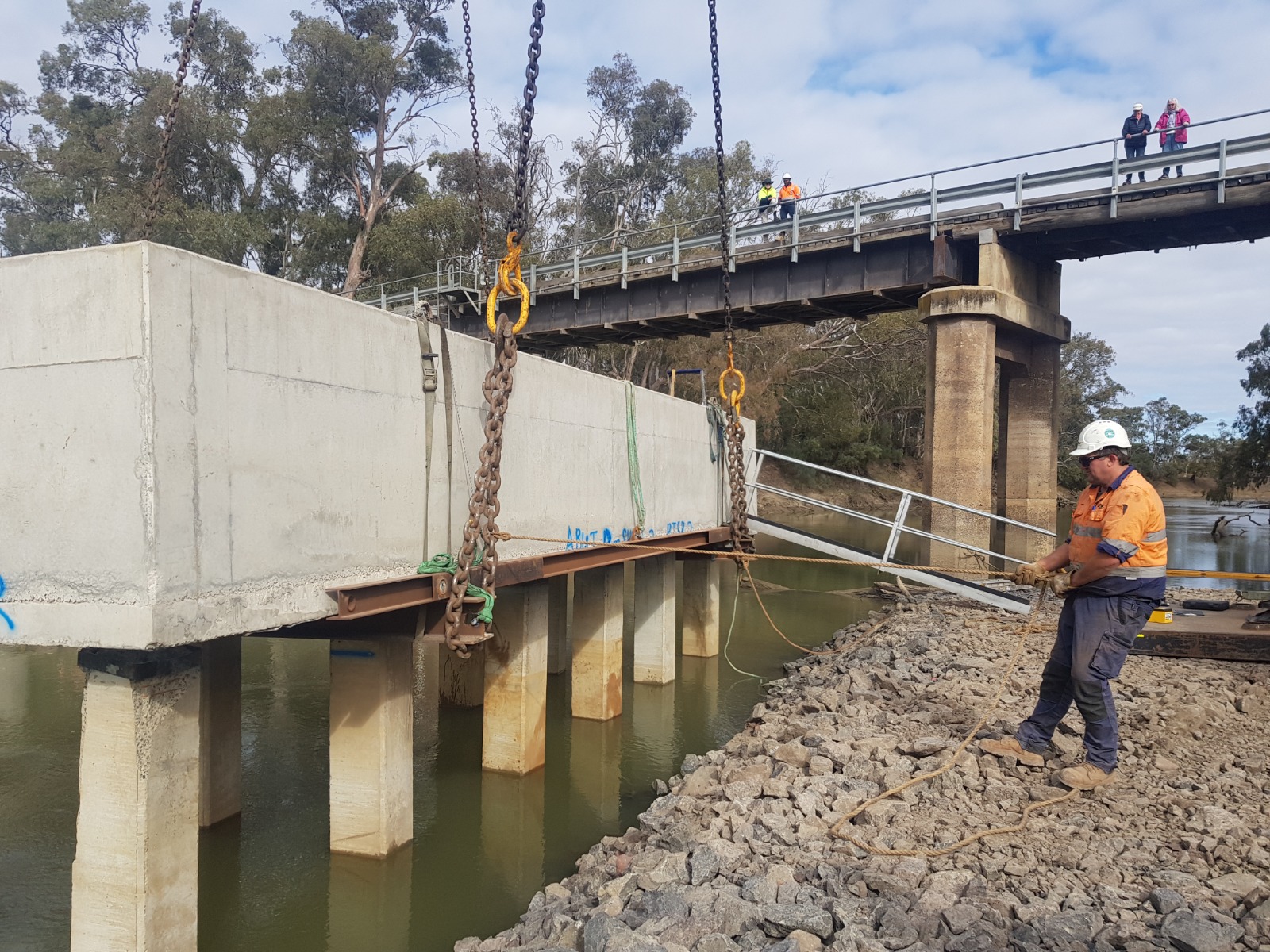

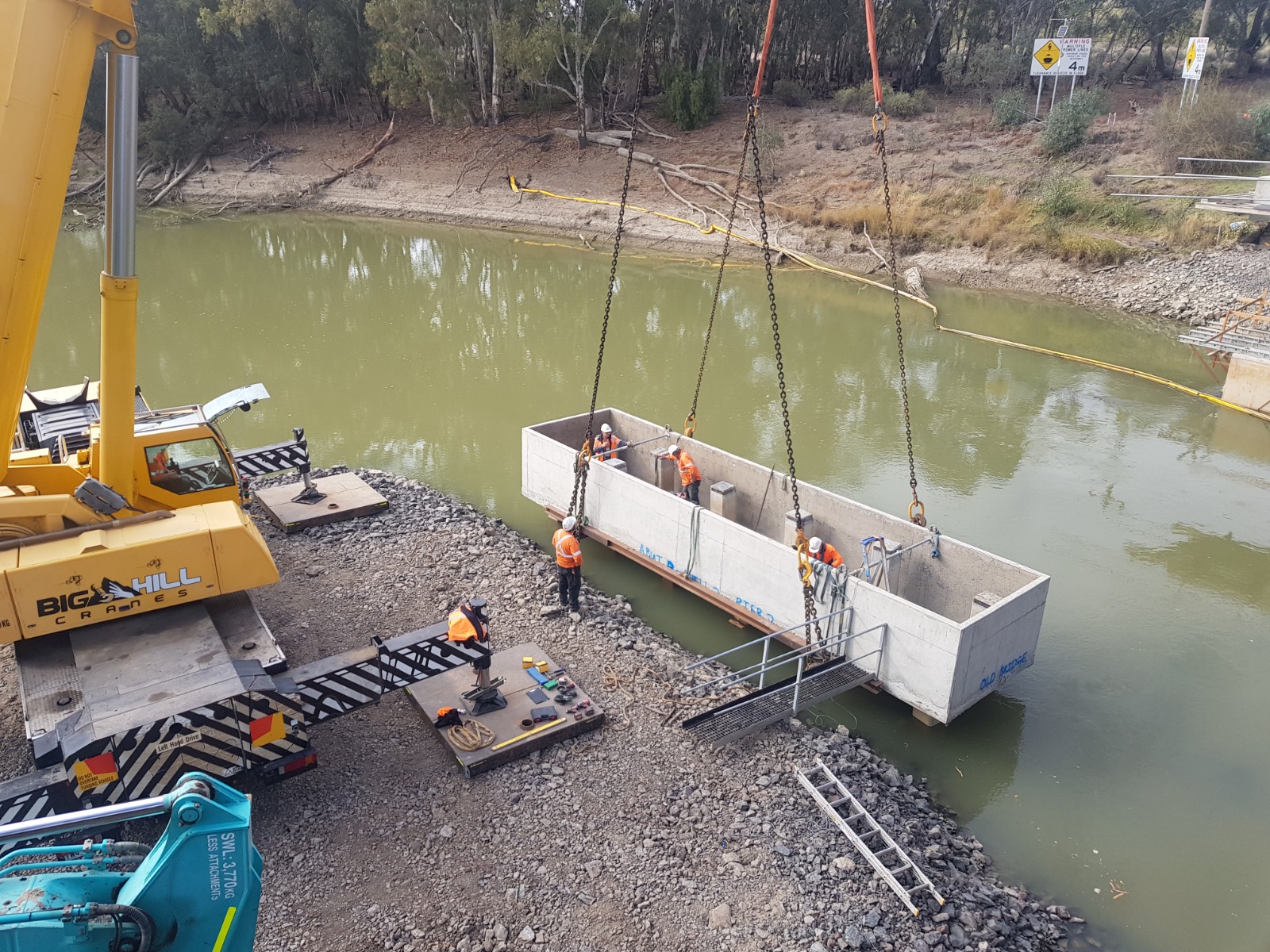

Shells lifted onto piles; holes pre-cut using as-built of 36 no. conc. Piles
-

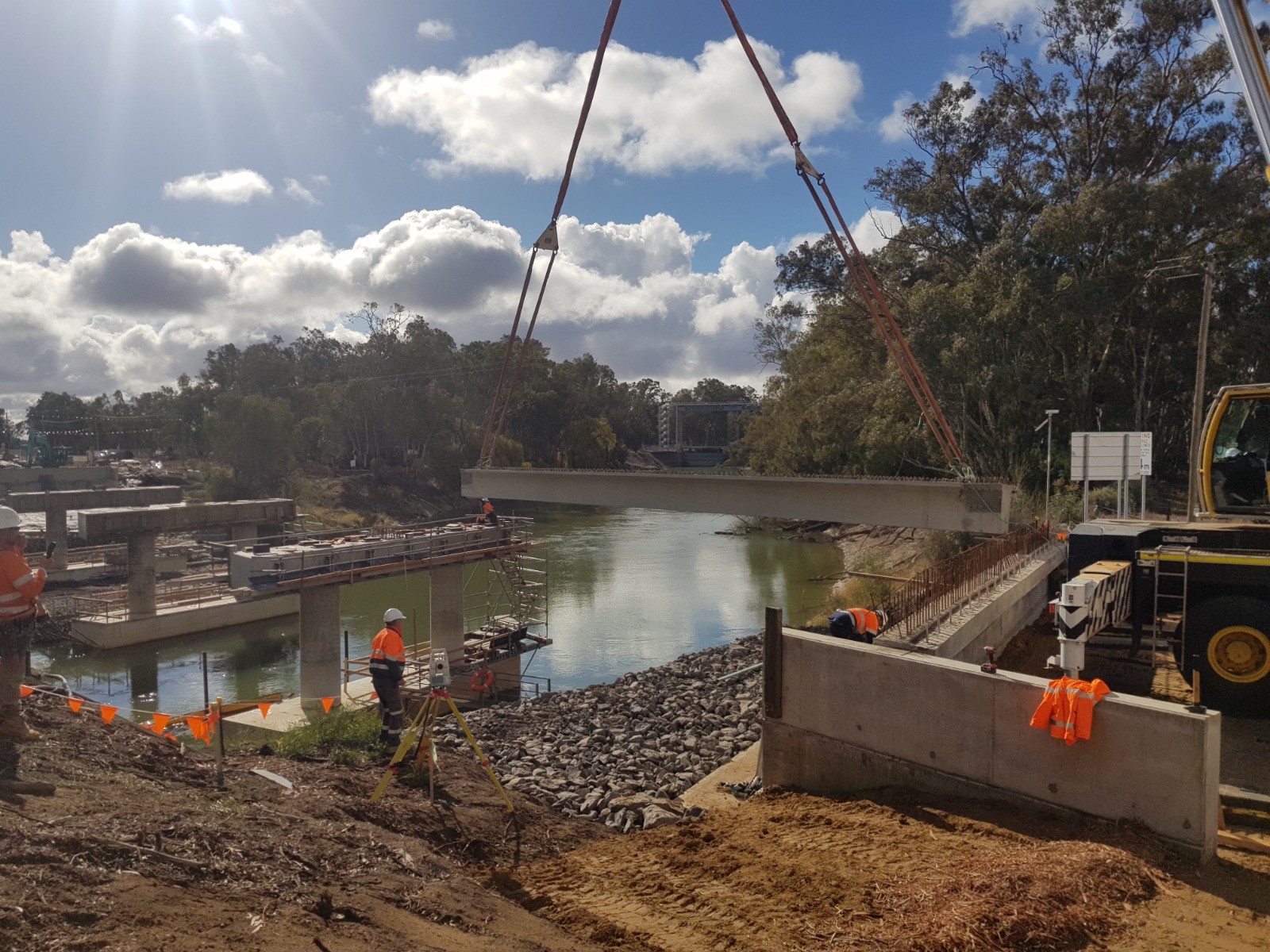

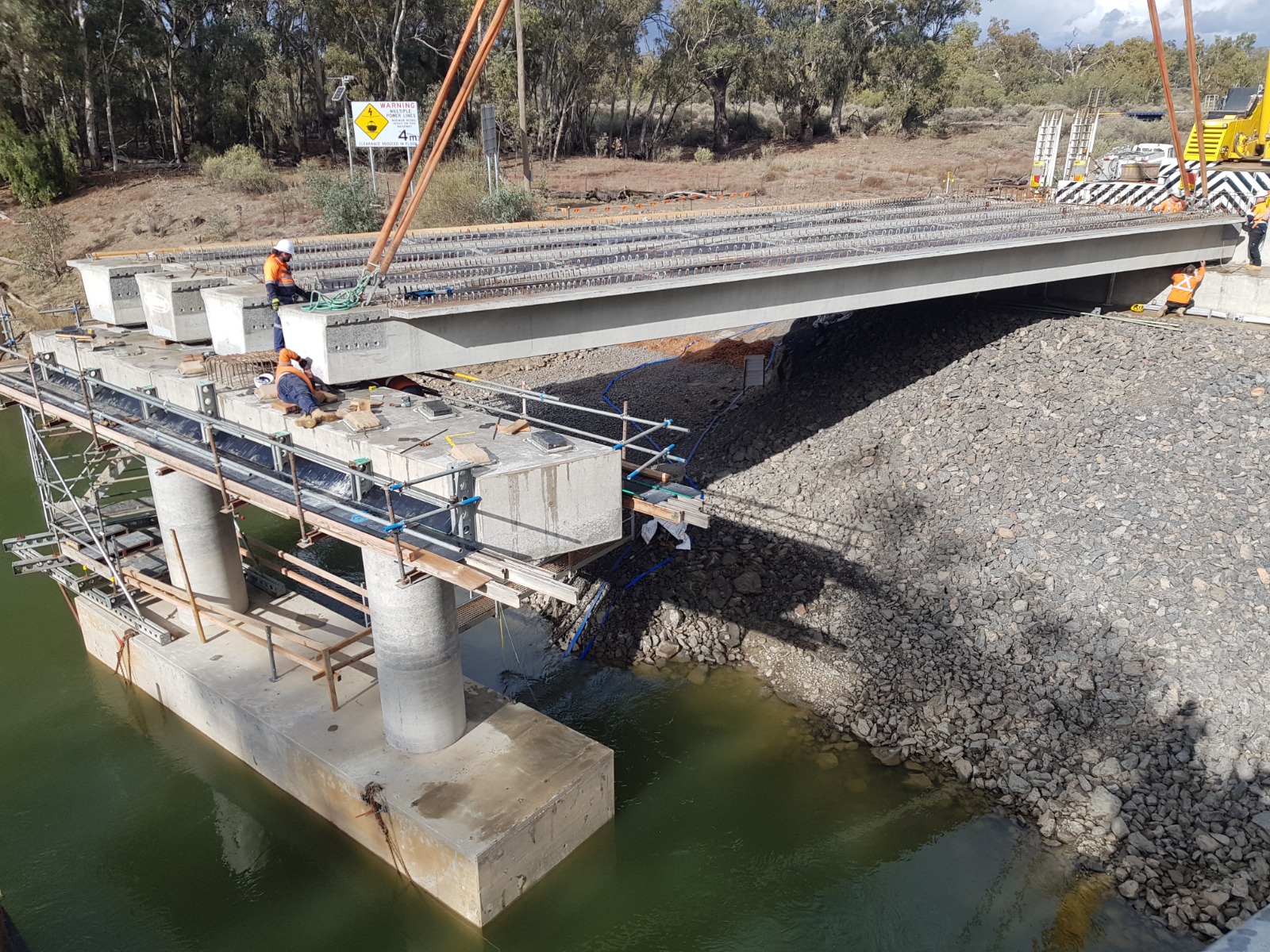

2 abutments, three piers, 24 T-beams installed
- >Deck poured
- Asphalt, earthworks, signage
- Works as executed drawings and surveys.
- Roadworks to connect existing road network to bridge.
- Demolition of the existing bridge.
Value
$20+million
Duration
2020 – 2022
